Types of Motors in Tire Inflators

Tire inflators use electric motors to drive a piston that compresses air. The type of motor depends largely on the inflator's intended use, power source, and price point.

The primary categories of motors in tire inflators are divided by their power source: DC motors for portable units and AC motors for stationary garage units. Within portable DC inflators, a key distinction is between brushed and brushless motor technology.

1. Motors in Portable Tire Inflators (DC Powered)

Most portable tire inflators designed to be carried in a car run on direct current (DC) electricity. They typically draw power from a vehicle's 12V accessory outlet (cigarette lighter) or an internal rechargeable battery.

Brushed DC Motors

This is the most common type of motor found in affordable portable tire inflators.

• How they work: They use physical carbon "brushes" to conduct electrical current to the spinning part of the motor (rotor).
• Advantages: They are simple in design and inexpensive to manufacture, making inflators that use them more affordable.
• Disadvantages: The physical contact of the brushes creates friction, causing heat and noise. Over time, the brushes wear out, which limits the overall lifespan of the motor. They are generally less efficient than their brushless counterparts.



Brushless DC Motors (BLDC)

These motors are increasingly found in higher-end, high-performance portable tire inflators.

• How they work: Instead of physical brushes, they use electronic circuitry to control the current and rotation.
• Advantages: Without the friction from brushes, they run cooler, are significantly quieter, and are more energy-efficient. This efficiency often translates to faster inflation times and longer battery life in cordless models. They also have a much longer operational lifespan.
• Disadvantages: The complex electronics make them more expensive to produce, resulting in a higher retail price for the inflator.

A subtype of motor often used in portable compressors is the universal motor. It can run at very high speeds to generate a lot of power from a small, lightweight package, but it is typically loud and uses brushes, leading to a shorter lifespan.

2. Motors in Stationary/Garage Tire Inflators (AC Powered)

Larger inflators meant for use in a home garage plug into a standard household wall outlet (typically 110V-120V AC).

Induction Motors

These are the standard for larger, heavier-duty air compressors.

• How they work: They operate on alternating current and use electromagnetic induction to create rotation without any physical electrical contact to the rotor. They are inherently brushless.

• Advantages: Induction motors are known for being extremely durable, reliable, and quiet. They can run for longer periods without overheating and have a very long service life.
• Disadvantages: They are heavy and bulky, making them unsuitable for truly portable inflators. They are typically found in larger units that might be wheeled around a garage but not stored in a car trunk.

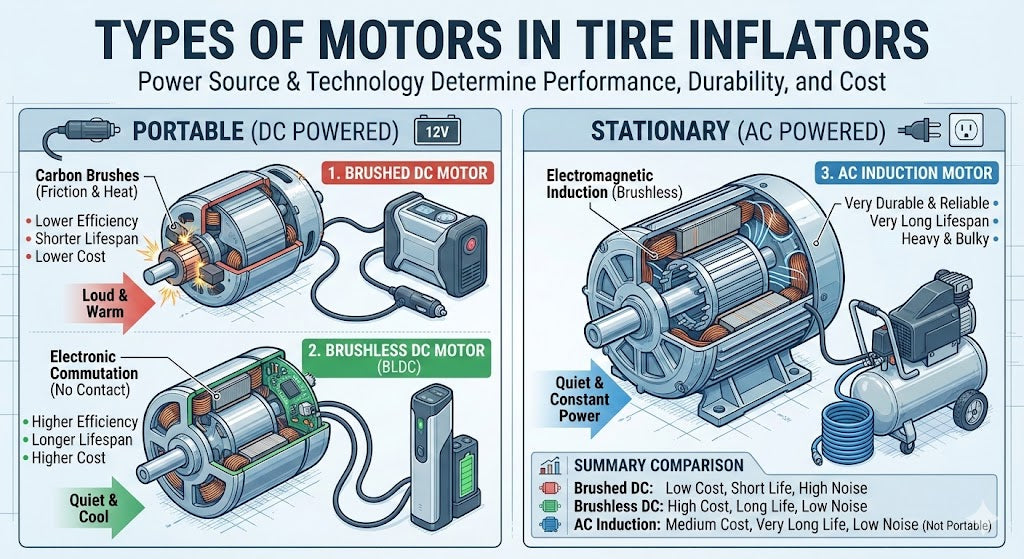

Summary Comparison Table

Feature	Brushed DC Motor	Brushless DC Motor	AC Induction Motor
Primary Use	Portable 12V Inflators	High-End Portable Inflators	Home Garage Compressors
Power Source	12V Battery / Car Outlet	12V Battery / Car Outlet	110-120V Wall Outlet
Cost	Low	High	Medium to High
Lifespan	Shorter (due to brush wear)	Very Long	Very Long
Noise Level	High	Low	Low
Efficiency	Lower (energy lost as heat)	Higher	High
Portability	Excellent	Excellent	Poor (Heavy & Bulky)



Some versatile tire inflators offer dual power options, containing a motor that can run off both a 12V DC source for portability and a 120V AC source for home use.

Ultimately, the choice of motor affects the inflator's speed, noise level, durability, and price. A simple brushed DC motor is sufficient for occasional emergency use, while a brushless DC or AC induction motor is better suited for frequent or demanding applications.
